Attention! We inform you that the supply of goods from this manufacturer is longer than usual, because before the shipment, the manufacturer carries out a general, thorough assurance of the goods, which ensures that all the goods sent meet the quality and technical characteristics of the Naggura brand!

Naggura comes to the market with a new generation of beauty, aesthetic and medical beds, which are distinguished by a completely innovative design and technically optimized solutions.

Naggura's creative team looks at ordinary things with unusual eyes! The design and functionality of the beds have been carefully developed with the help of professionals of excellent reputation, designers, physiotherapists and osteopaths.

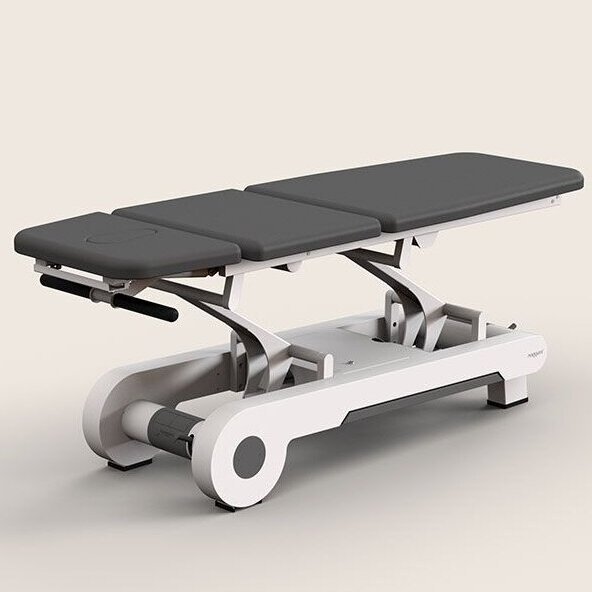

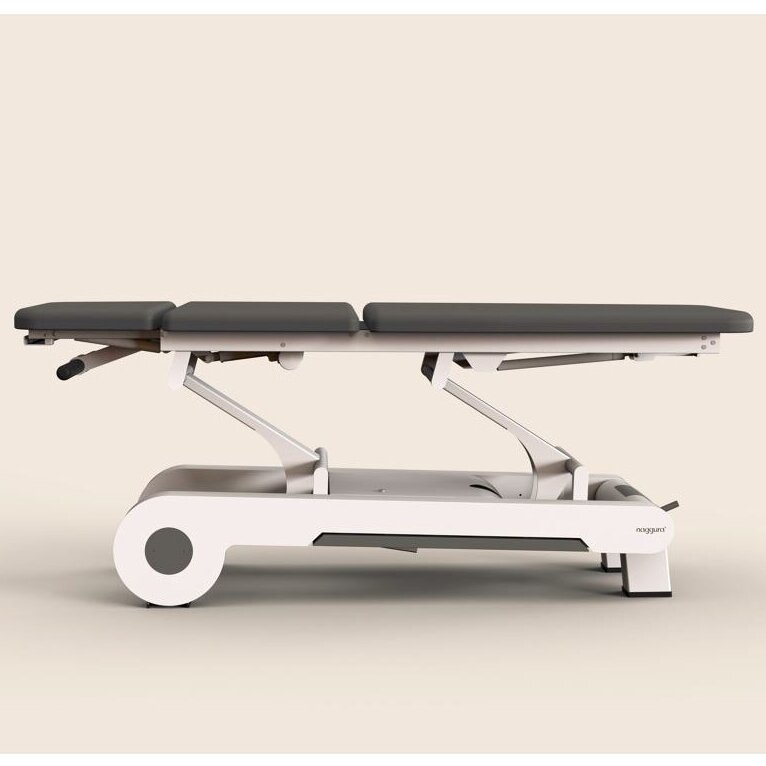

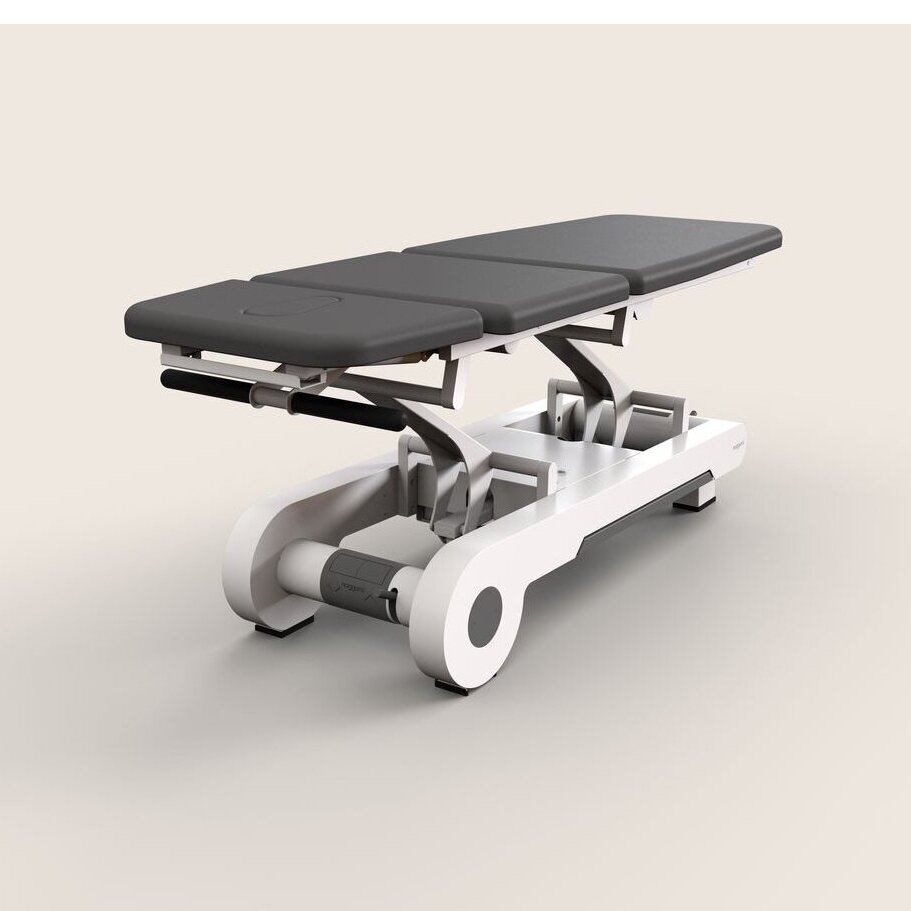

Electric 3-section treatment, therapy table that can be adjusted to multiple positions for optimal flexibility and comfort. The table is equipped with 2 motors: the first one regulates the height of the table, and the second one regulates the middle section (kyphosis). 3 parts allow for Trendelenburg position, lower back kyphosis treatment and massage chair position. The height of the table is adjusted by a perimeter foot switch located at the base of the table, and the middle part is adjusted by a button box located on one side of the table frame.

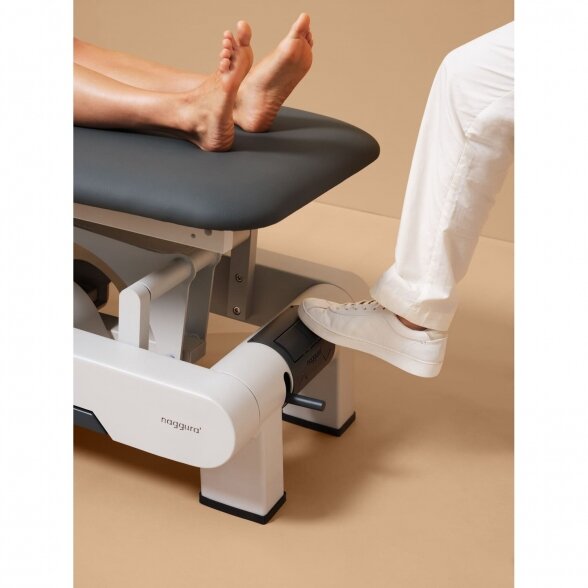

Peripheral switch: 2 rods fully integrated into the base structure adjust the height position. At the front and rear, height movement is controlled by 2 foot switches, moving up and down respectively.

• Head part with 2 gas (hydraulic) springs.

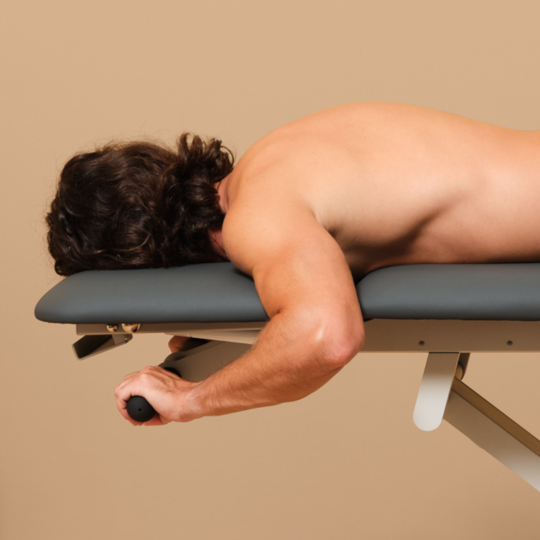

• Hand support.
• Fully integrated peripheral switch, easy access from all sides.
• 4 wheels that rotate 360°.
• 2 levers raise the table on 4 wheels.
• Electrically adjustable middle section. Switches on both sides.
• Leg part with 1 gas (hydraulic) spring.

General Specifications:

ENGINES
1 motor, adjustable height (6000 N),
1 motor, adjustable middle part of the table (6000 N)

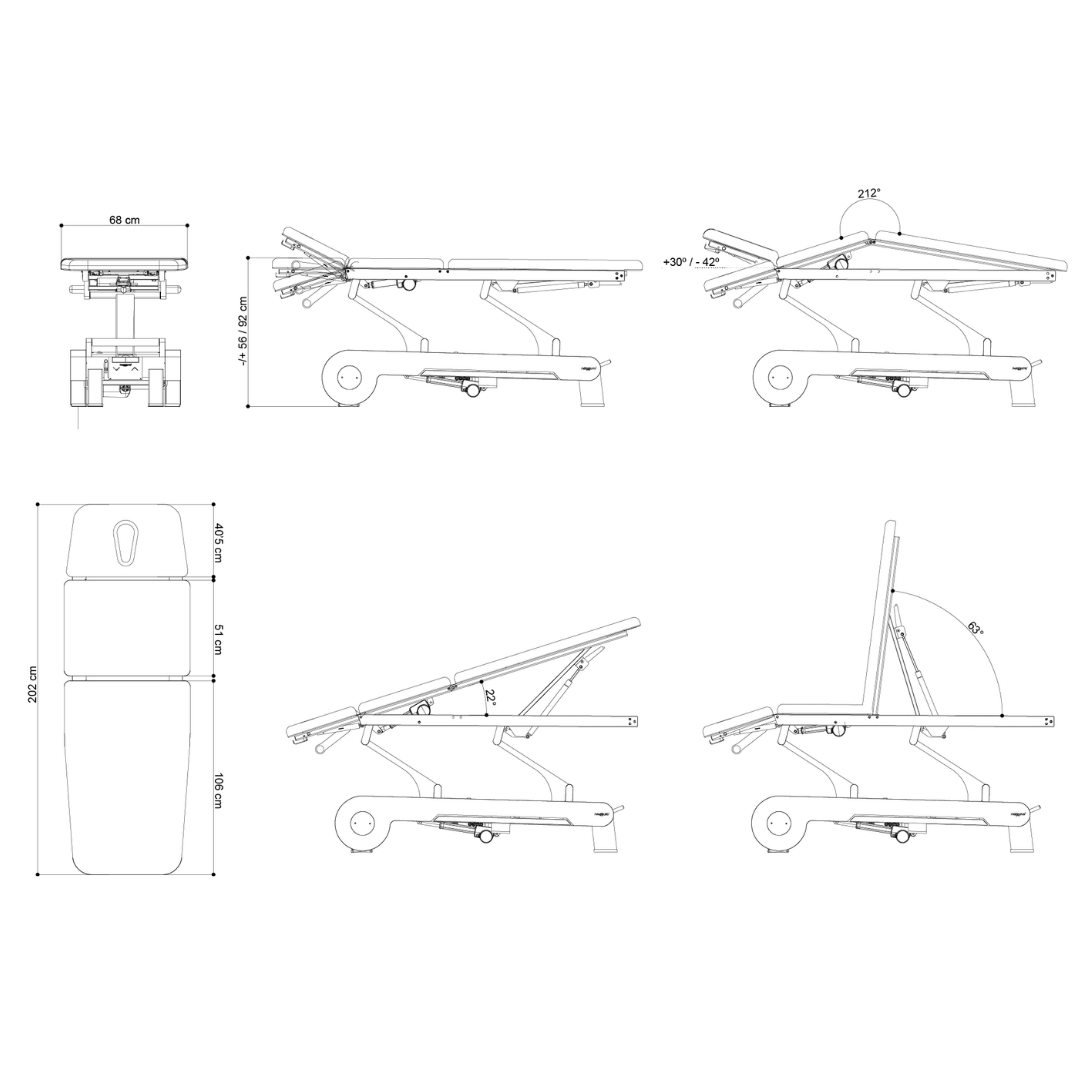

HEIGHT ADJUSTMENT: -/+ 56/92 cm
WEIGHT: 145 kg

AC100 – 120V, 50/60 Hz
AC220 – 240V, 50/60 Hz

INSULATION CLASS: Reinforced insulation II
PRODUCT CLASSIFICATION: Class I equipment
APPLIED PARTS: Type B
MOISTURE RESISTANCE: IPX0

COMPLIANCE:
IEC 60601-1:2005, IEC 60601-1:2005 / AMD1:2012
EN 60601-1-2:2015, IEC 60601-1-6:2010
IEC 60601-1-6:2010/AMD1:2013, ISO 10993-10:2010
ISO 10993-5:2009

FRAME COLOR: RAL 7047 + RAL 7011
Supply cable: 3m, white

Safety: Safety switch with key (power off). Dual nozzle system with automatic stand-by system (15 sec.).

Upholstery:

THICKNESS: 5 cm
DENSITY: 40kg/m³
Breather and plug. Seamless upholstery with rounded edges. Cover: 100% vinyl. Permablok 3 © advanced vinyl protection (against germs and bacteria). The highest wear resistance: >300 thousand. cycles.
Flame retardant: NF P 92-503/M2
Color: Graphite

DOWNLOAD THE MANUFACTURER'S TECHNICAL SPECIFICATION CARD

Naggur, Spain.
