Attention! We inform you that the supply of goods from this manufacturer is longer than usual, because before the shipment, the manufacturer carries out a general, thorough assurance of the goods, which ensures that all the goods sent meet the quality and technical characteristics of the Naggura brand!

Naggura comes to the market with a new generation of beauty, aesthetic and medical beds, which are distinguished by a completely innovative design and technically optimized solutions.

Naggura's creative team looks at ordinary things with unusual eyes! The design and functionality of the beds have been carefully developed with the help of professionals of excellent reputation, designers, physiotherapists and osteopaths.

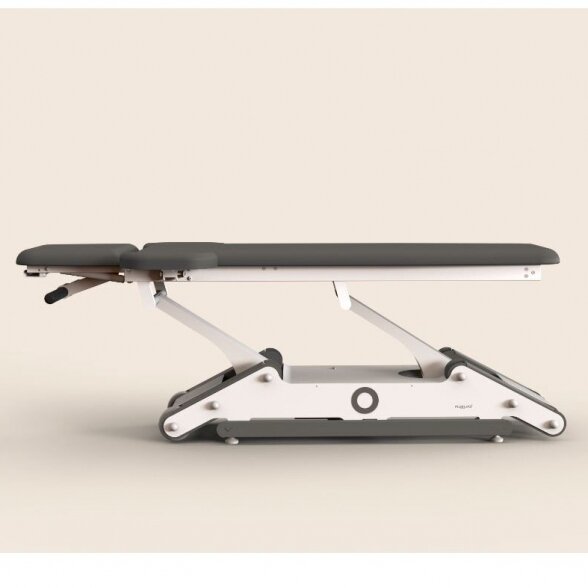

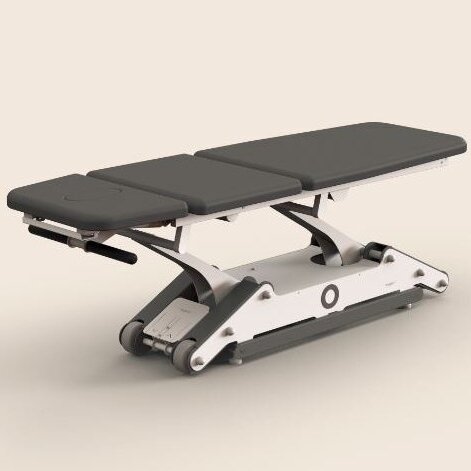

Electric 3-piece rehabilitation, therapy table that can be adjusted to multiple positions for optimal flexibility and comfort. The table is equipped with 2 motors: the first one regulates the height of the table, and the second one regulates the middle section (kyphosis). The 3 parts allow the table to be set into the Trendelenburg position, and also for the treatment of kyphosis, the lower back can be set up as a massage chair. The height of the table is adjusted by a perimeter foot switch located at the base of the table, and the middle part is adjusted by a button box located on one side of the table frame.

Naggura Peripheral System

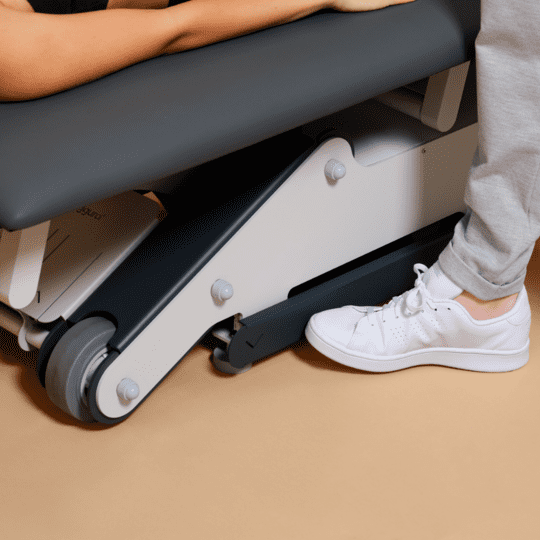

N'GO has a practical and intuitive table height adjustment system. On either side, simply slide the ends of the linear bar to raise and lower the table to suit your work needs. The height control is accessible from all working points to always be close to the patient. At the ends of the table, 2 pedal switches adjust the height. The result: a peripheral system that ensures optimal work ergonomics.

General Specifications:

• Head part with 2 gas springs. Steering wheel support.
• Fully integrated peripheral switch, easy access from all sides.
• 2 wheel system on one side of the bed.
• Electrically adjustable middle part. Switches on both sides.
• Leg part with 1 gas spring.

ENGINES: 1 engine height (6000 N); 1 engine middle section (6000 N)

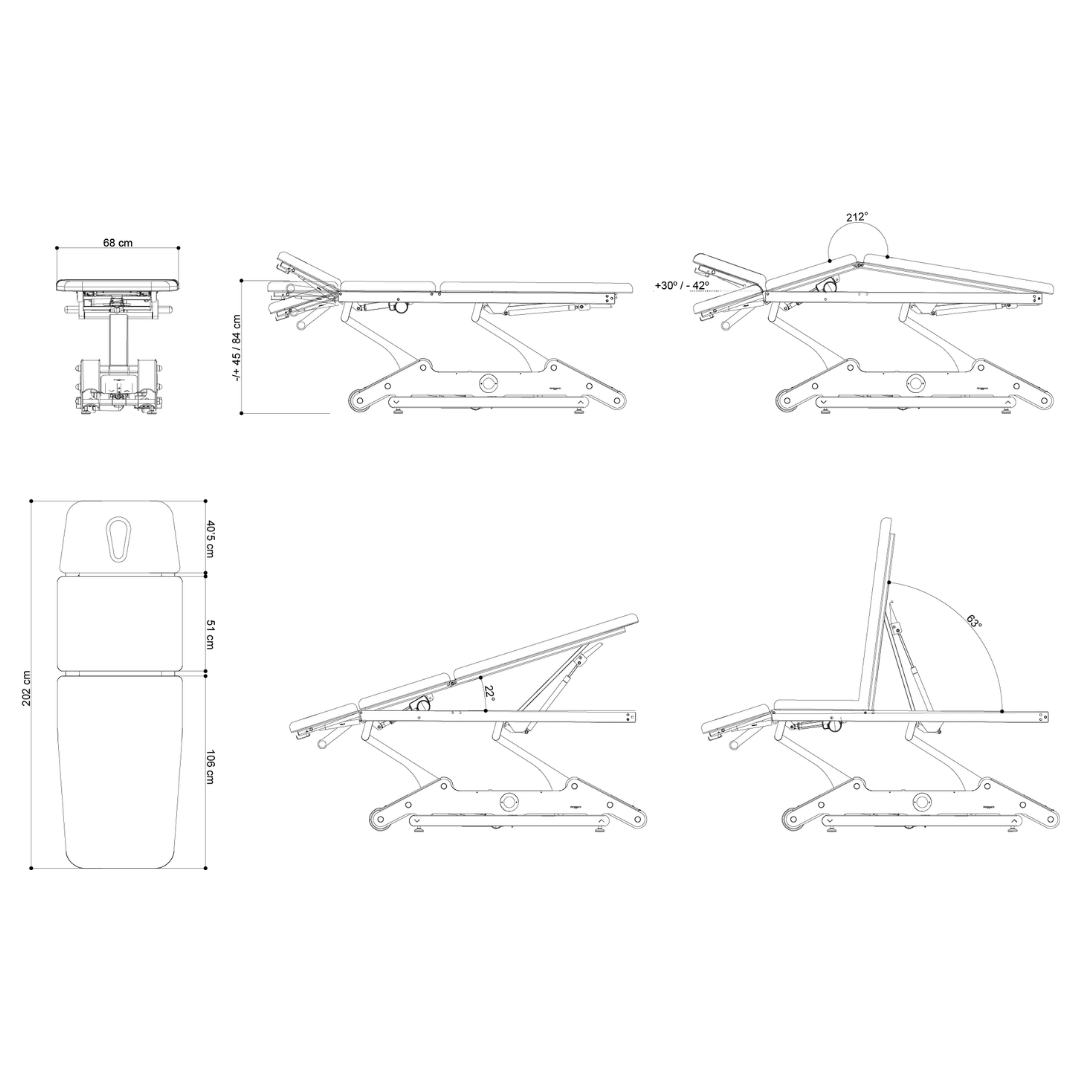

HEIGHT ADJUSTMENT: -/+ 45/84 cm

WEIGHT: 140 kg

POWER SUPPLY: AC100 – 120V, 50/60 Hz; AC220 – 240V, 50/60 Hz

INSULATION CLASS: Reinforced insulation II

PRODUCT CLASSIFICATION: Class I equipment

APPLICABLE PARTS: Type B

MOISTURE RESISTANCE: IPX0

COMPLIANCE: IEC 60601-1:2005, IEC 60601-1:2005/AMD1:2012: EN 60601-1-2:2015, IEC 60601-1-6:2010: IEC 60601-1-6:2010/AMD1:2013 , ISO 10993-10:2010: ISO 10993-5:2009

FRAME COLOR: RAL 7047 + RAL 7011

Supply cable: 3m, white

Safety: Safety switch with key (power off). Dual nozzle system with automatic standby system (15 sec.)

Upholstery:

THICKNESS: 5 cm
DENSITY: 40kg/m³
Breathing hole and plug. Seamless upholstery with rounded edges. Cover: 100% vinyl. Permablok 3 © advanced vinyl protection (against germs and bacteria). The highest wear resistance: >300 thousand. cycles. Flame retardant: NF P 92-503/M2

Color: Graphite

DOWNLOAD MANUFACTURER'S TECHNICAL SPECIFICATION CARD

Naggura, Italy.
